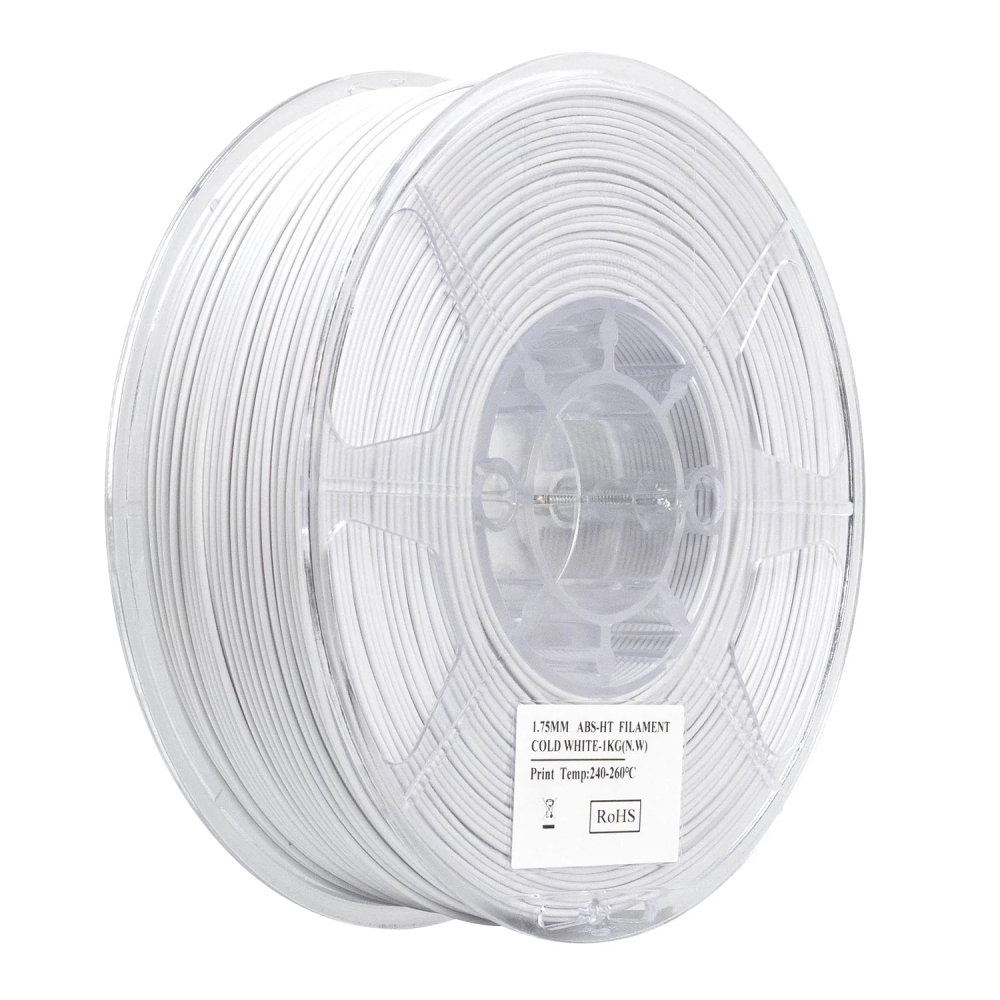

eSUN ABS‑HT High Temperature (Cold White) 3D Printing Filament – 1kg – 1.75mm
eSUN ABS‑HT Cold White is a high‑performance engineering filament designed for applications requiring superior heat resistance and mechanical strength. It is ideal for industrial parts, mechanical components, functional prototypes, and end‑use products that must withstand elevated temperatures.
ABS‑HT offers excellent dimensional stability, reduced warping, and a clean professional finish, making it a reliable choice for demanding engineering projects.
🎨 Product Information
- Brand: eSUN
- Material: ABS‑HT (High Temperature ABS)
- Color: Cold White
- Net Weight: 1kg
- Diameter: 1.75mm ± 0.03mm
⭐ Key Features
- 🔥 High heat resistance far superior to standard ABS.
- 🧱 Excellent mechanical strength for functional and industrial parts.
- 🧩 Reduced warping with stable printing performance.
- 🏭 Ideal for mechanical components, tools, fixtures, and end‑use parts.
- 🖨️ Compatible with high‑temperature FDM printers.
- 📏 High dimensional accuracy (1.75mm ± 0.03mm).
🔧 Recommended Print Settings
- 🌡️ Nozzle Temperature: 260 – 280°C
- 🛏️ Bed Temperature: 100 – 120°C
- 🏠 Enclosure: Required to reduce warping
- 💨 Fan Speed: 0 – 20%
- 🏃♂️ Print Speed: 40 – 70 mm/s
- ⭕ Nozzle Size: 0.4mm or larger
📊 Technical Data Sheet (ABS‑HT Cold White)
- Density: 1.05–1.10 g/cm³
- Tensile Strength: 40–50 MPa
- Flexural Strength: 70–90 MPa
- Elongation at Break: 10–20%
- Heat Deflection Temp: 110–125°C
- Melting Point: ~230–240°C
- Shrinkage: Medium (requires heated bed + enclosure)
⚠️ Important Notes
- Use an enclosed printer for best results.
- ABS‑HT may require tuning depending on your machine.
