Print Settings Configuration Guide

Comprehensive Technical Data Sheet Guide for 3D Printing Filaments

This reference guide compiles the mechanical and thermal properties, along with the recommended printing settings, for the most popular 3D printing materials from leading global manufacturers such as:

  • eSUN
  • Bambu Lab
  • Fillamentum
  • SpiderMaker
  • R3D
  • and more…

The purpose of this guide is to help you choose the most suitable material for your project based on verified, manufacturer‑approved technical data.

🔗 Official Technical Data Sheet (TDS) Links

1) eSUN

All official data sheets for eSUN filaments are available via the company's dedicated filter page:

🔗 eSUN Official Datasheet Library


2) Bambu Lab

Bambu Lab provides official data sheets for each material:

🔗 Bambu Lab Official Datasheet Library


3) Fillamentum

The company provides detailed data sheets for each material:

🔗 Fillamentum Official Datasheet Library


4) SpiderMaker

Official data sheets for SpiderMaker filaments:

🔗 SpiderMaker Official Datasheet Library


5) R3D

Official data sheets for R3D filaments:

🔗 R3D Official Datasheet Library

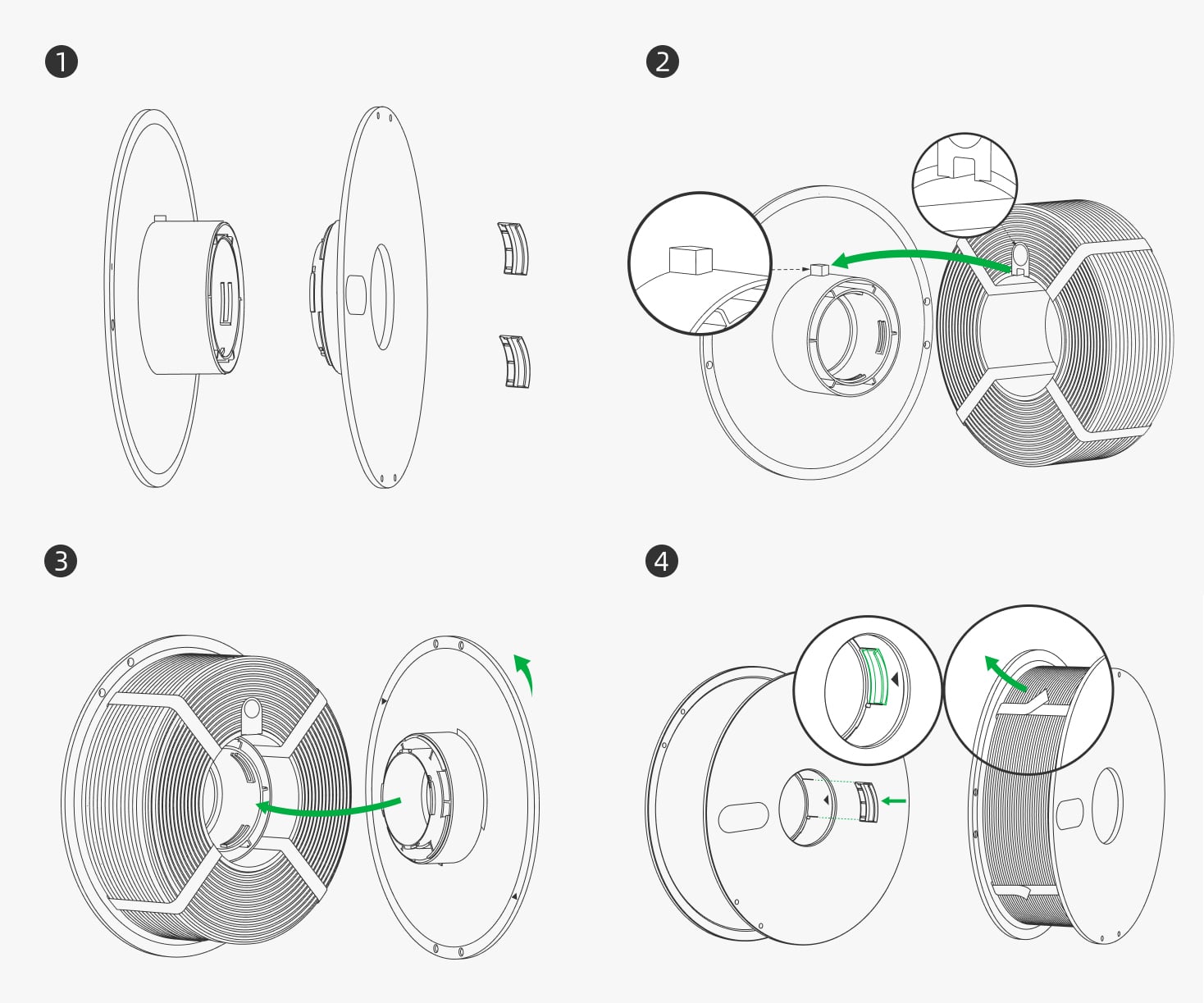

Visual Guide: How to Install and Load Bambu Lab Refill Spools

This video provides a practical demonstration of how to disassemble and re‑install refill filament coils into official Bambu Lab spools. It helps you use materials efficiently, reduce plastic waste, and ensure perfect compatibility with the AMS automatic material system.




Fixing Tangled Filament Issues During Printing

This short video presents a quick and effective solution to one of the most common problems faced by 3D printing users: tangled or knotted filament inside the spool. It demonstrates the correct manual method to untangle and realign the filament to p




️ Guide: Importing and Applying eSUN Filament Profiles in Bambu Studio & Creality Print

This guide explains how to download, import, and apply eSUN filament profile files for:

  • Bambu Lab printers via Bambu Studio
  • Creality printers via Creality Print

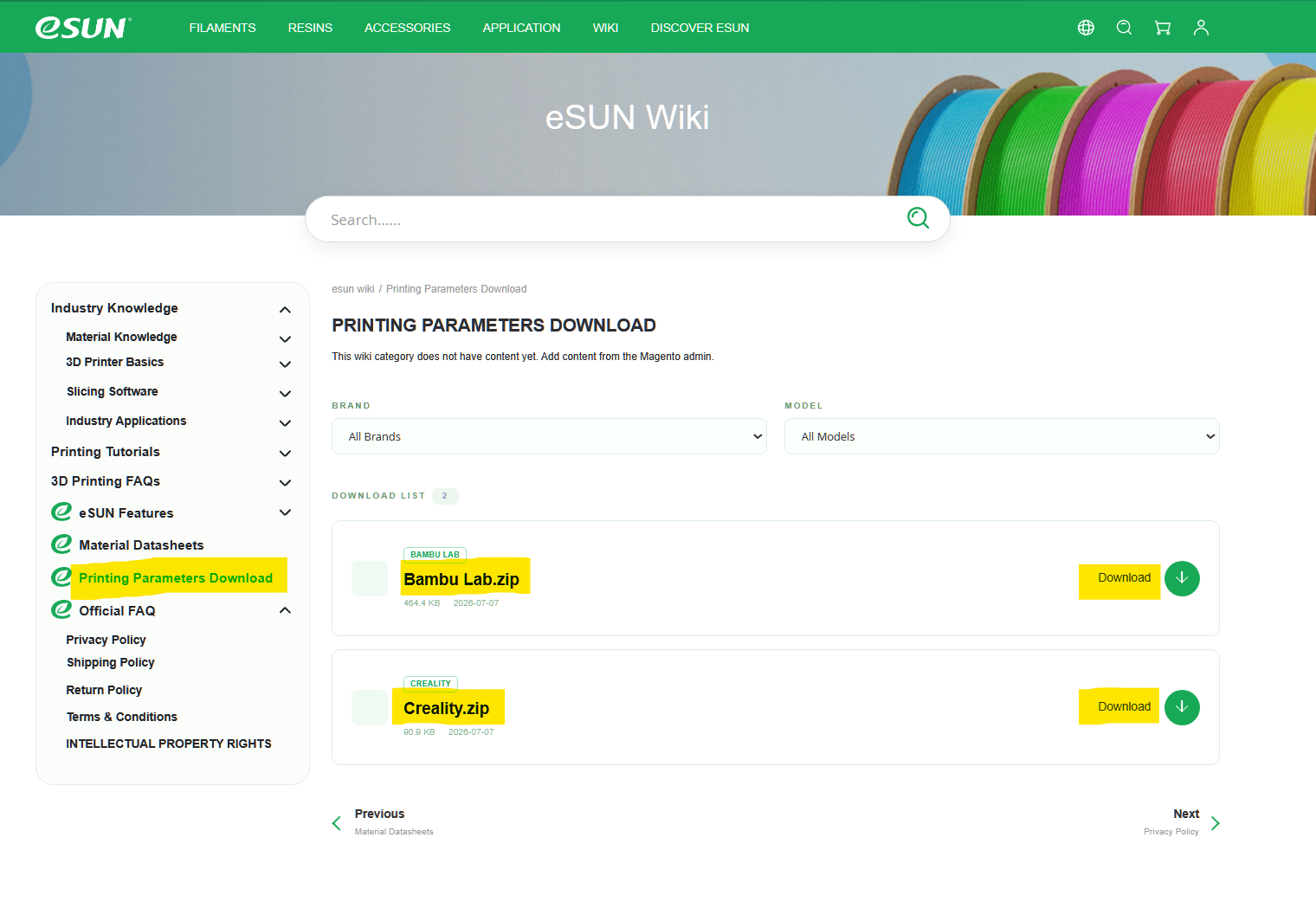

Step 1: Download the Profile File and Extract It

  • Download the profile file from the official eSUN website
  • 🔗(here).
  • Click the Download button next to: eSUN Filament Printing Parameters for Bambu Lab OR Creality Print.


  • Extract the file: Go to your Downloads folder, right‑click the compressed file, and choose Extract Here or Extract to….


Step 2: Import Profiles into Bambu Studio

Open the Import Menu

1.Launch Bambu Studio.

2.From the top-left menu, click File → Import → Import Configs…


Select Your Printer Model

A file browser window will appear. Open the extracted folder and select the folder matching your exact printer model (e.g., X1C, P1S, A1). Click Open.


Import the JSON Profile Files

Select all configuration files inside your printer’s folder (Ctrl + A to select all). Click Open to import them into Bambu Studio.


Step 3: Apply the Settings to Your Print Project

Choose the Filament Preset

In the left sidebar under Filament, click the three dots → Custom → User presets. Select the eSUN filament you want to use (e.g., X1C eSUN ABS+ Filament).


Choose the Process Preset

Under Process, open the dropdown → User presets. Select the matching process file (e.g., X1C eSUN ABS+ Process) to apply correct speeds, temperatures, and layer settings.


Section Two: Importing Profiles into Creality Print

Step 1: Download the Profile Files

eSUN also provides ready-made profiles for Creality printers. If your files are in .json or .ini format, they are compatible with Creality Print.

Step 2: Import Profiles into Creality Print

  1. Open Creality Print.
  2. From the top-left menu, choose: Settings → Filament Settings or Import Configurations (depending on your version).
  3. Click Import.
  4. Select the eSUN filament profile files. They will be added directly to the Filament Presets list.


🎥 Visual Guide for Creality Printers

This video demonstrates—step-by-step—how ​​to import filament settings.

Use it as a visual reference to follow the steps accurately.


Step 3: Select Filament and Process Settings in Creality Print

After import:

Choose the Filament Type

From the Filament menu, select the imported eSUN filament.

Choose the Process Settings

From Process / Quality / Speed, select the matching profile (ABS+, PLA+, PETG, etc.).

⚠️ Important Note for Creality Printers

Always ensure you select the correct printer model inside Creality Print before applying any settings. Speed and temperature profiles vary significantly between:

  • K1
  • K1 Max
  • Ender 3
  • Ender 3 V3
  • CR‑10
  • and others…

Selecting the correct model ensures safe and optimal printing performance.

⚠️ Final Reminder

Always choose the correct printer model folder during profile import to guarantee the best results and fully compatible printing speeds.
