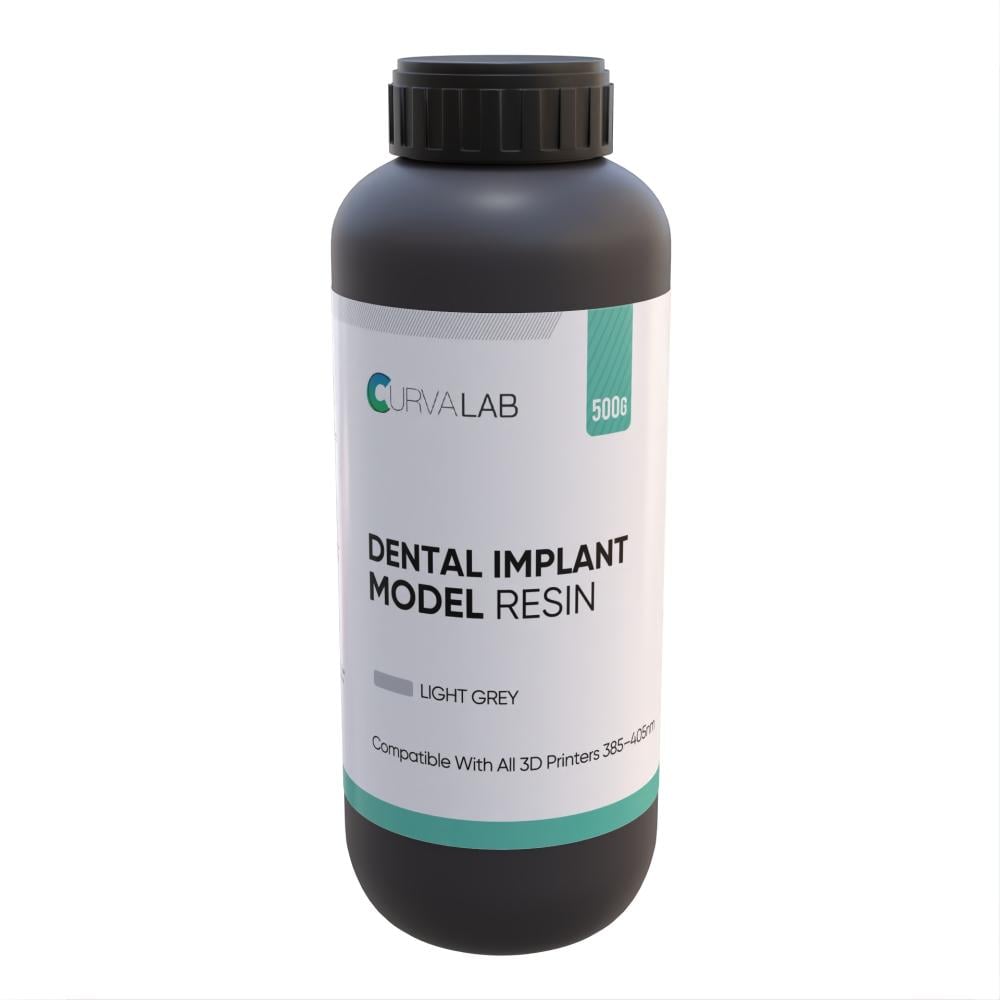

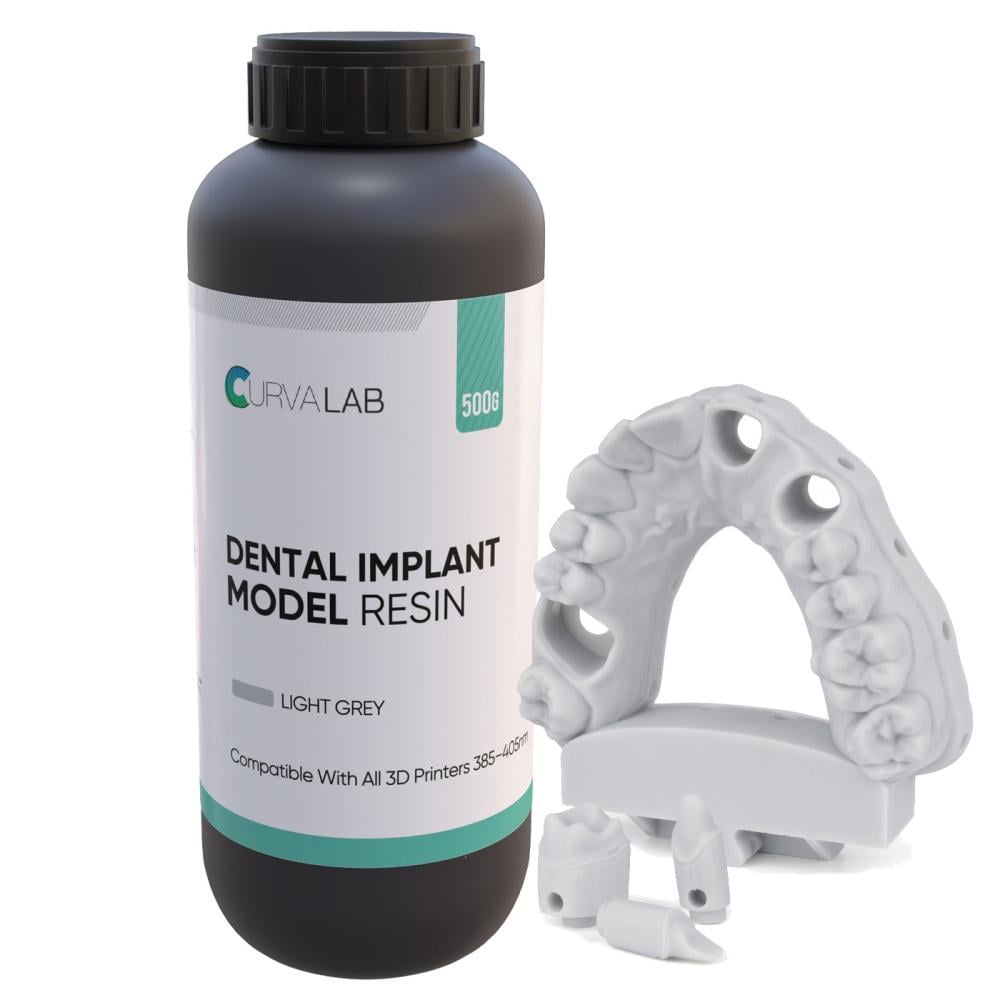

CurvaLab DENTAL IMPLANT MODEL Resin for LCD 3D printers is engineered for high‑precision implant modeling, offering exceptional dimensional stability, smooth surfaces, and accurate anatomical detailing. Its balanced hardness and low shrinkage make it ideal for implant planning, diagnostic models, and professional dental applications where accuracy and surface quality are essential.
🦷 Key Features
• High precision suitable for implant planning and clinical simulation.
• Excellent dimensional stability for accurate anatomical reproduction.
• Smooth surface finish requiring minimal post‑processing.
• Balanced hardness for durable, non‑brittle models.
• Low shrinkage ensures reliable fit and measurement accuracy.
• Compatible with LCD/MSLA.
🧩 Recommended Applications
• Dental implant models
• High‑accuracy diagnostic replicas
• Clinical simulation and treatment planning
• Educational and training models
• Professional laboratory display pieces
🔧 Recommended Print Settings
•Layer height (mm): 0.05-0.1
•Bottom exposure time(s): 20-30
•Layer exposure time(s): 2.5-4.5
•Bottom Lift Distance (mm): 6
•Lifting Distance (mm): 6
•Bottom Lift Speed (mm/min): 60
•Lifting Speed (mm/min): 80
•Retract Speed (mm/min): 150
•Rest time after retract: 2-3
📊 Resin performance
• Tensile Strength: 40–55 MPa
• Flexural Strength: 70–90 MPa
• Elongation at Break: 6–12%
• Shore Hardness: 80 – 90
• Viscosity: 200 – 350 mPa·s
• Density: 1.05 – 1.20 g/cm³
• Shrinkage: Very low
💡 Pro Tips
• Shake the bottle thoroughly before printing.
• Use gloves and proper ventilation.
• Clean prints with IPA or a suitable cleaning solution.
• Dry completely before curing.
• Apply gradual UV curing for optimal hardness.
