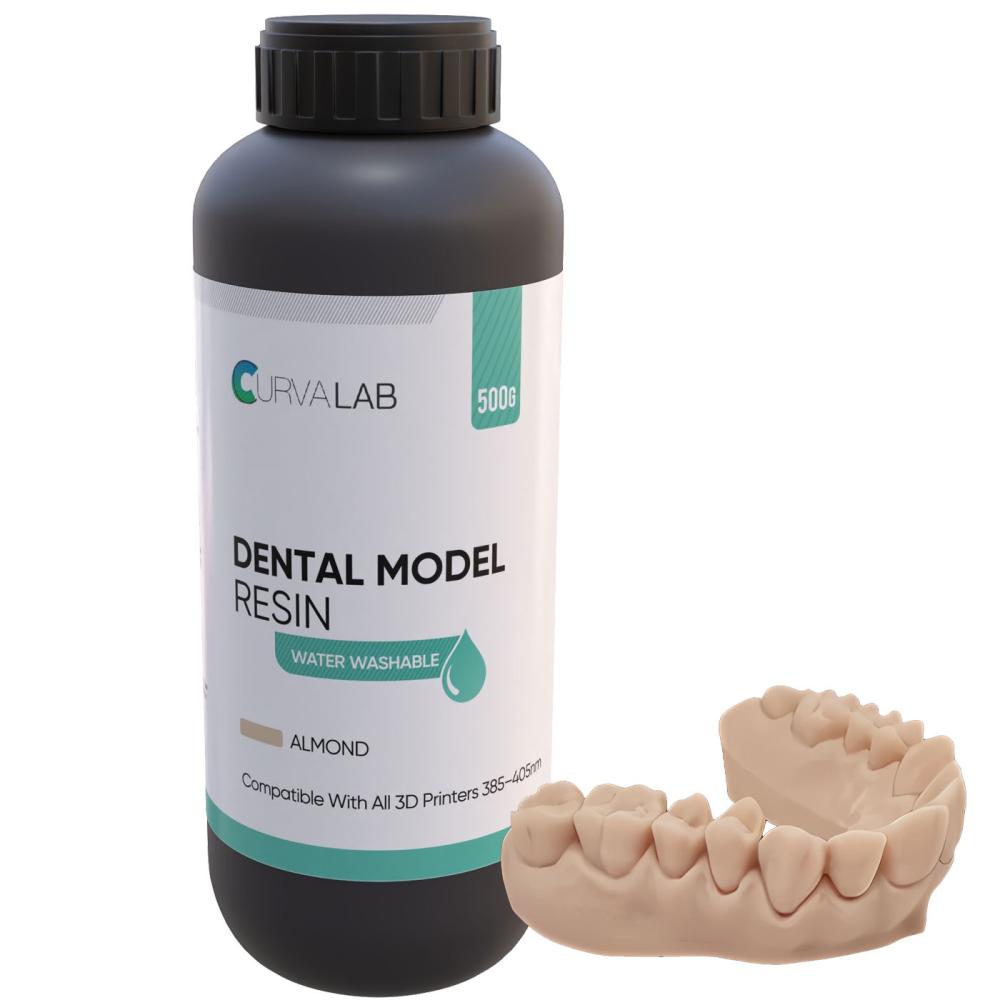

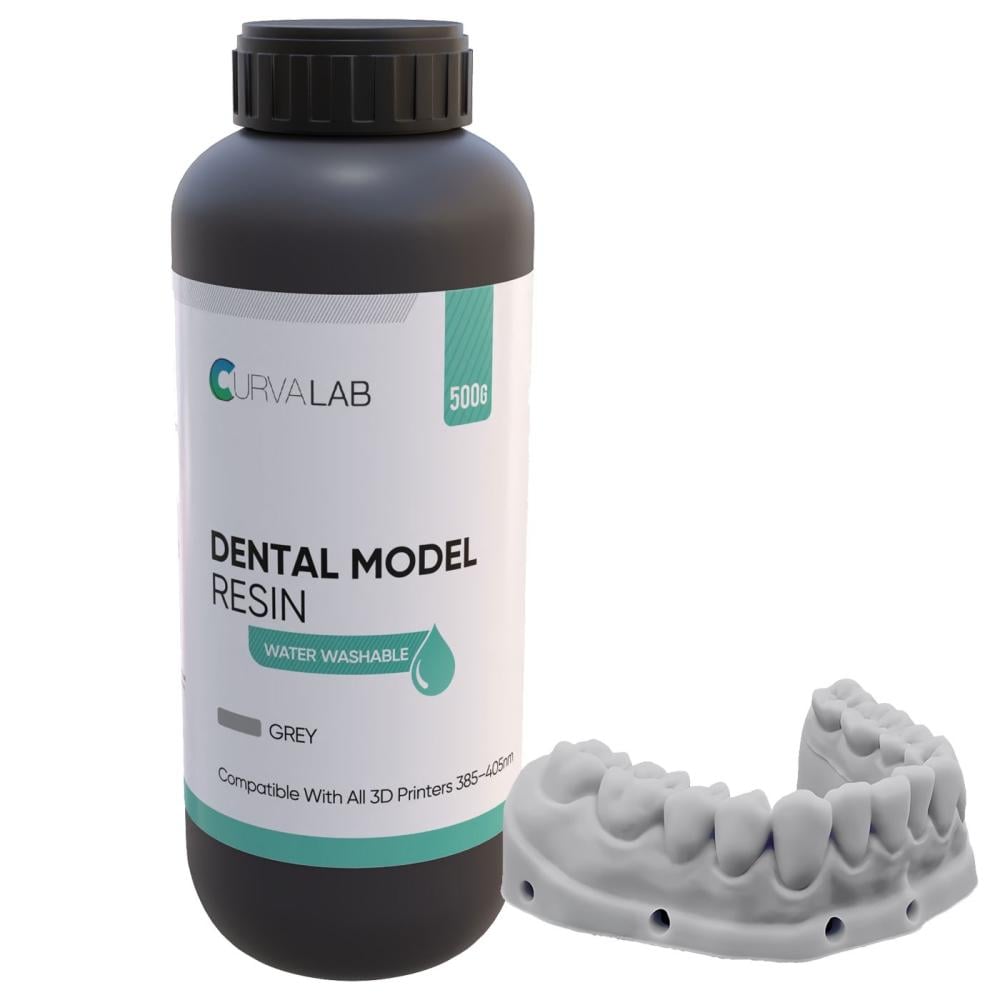

CurvaLab DENTAL MODEL Water Washable Resin for LCD 3D printers is engineered for high‑precision dental applications, offering excellent dimensional stability, smooth surfaces, and accurate detailing. Its water‑washable formulation eliminates the need for IPA, making post‑processing faster and cleaner. This resin is ideal for orthodontic models, diagnostic replicas, and educational dental prints.
🎨 Available Colors
• Grey
• Almond
⭐ Key Features
• 🦷 High precision suitable for dental and orthodontic modeling.
• 💧 Fully water‑washable for easy and clean post‑processing.
• 📏 Excellent dimensional stability for accurate clinical measurements.
• 🧽 Smooth surface finish requiring minimal post‑processing.
• 🧱 Balanced hardness for durable, non‑brittle models.
• 🖨️ Compatible with LCD/MSLA.
🧩 Recommended Applications
• Orthodontic and dental models
• Diagnostic and educational molds
• High‑detail dental demonstrations
• Precision medical replicas
• Display‑grade anatomical models
🔧 Recommended Print Settings
•Layer height (mm): 0.05-0.1
•Bottom exposure time(s): 25-35
•Layer exposure time(s): 2.5-3.5
•Bottom Lift Distance (mm): 6
•Lifting Distance (mm): 6
•Bottom Lift Speed (mm/min): 60
•Lifting Speed (mm/min): 80
•Retract Speed (mm/min): 150
•Rest time after retract: 2-3
📊 Resin performance
• Tensile Strength: 30–45 MPa
• Flexural Strength: 60–80 MPa
• Elongation at Break: 8–15%
• Shore Hardness: 80 – 90
• Viscosity: 150 – 300 mPa·s
• Density: 1.05 – 1.20 g/cm³
• Shrinkage: Very low
💡 Pro Tips
• Shake the bottle thoroughly before printing.
• Use gloves and ensure proper ventilation.
• Rinse prints with water only.
• Dry completely before curing.
• Apply gradual UV curing for optimal hardness.
