CurvaLab DENTAL MODEL Resin for LCD 3D printers is engineered for high‑precision dental applications, offering excellent dimensional stability, smooth surfaces, and reliable accuracy. Its specialized formulation is ideal for orthodontic models, diagnostic replicas, and educational dental prints, delivering consistent results with minimal post‑processing.
🎨 Available Colors
• High Clear

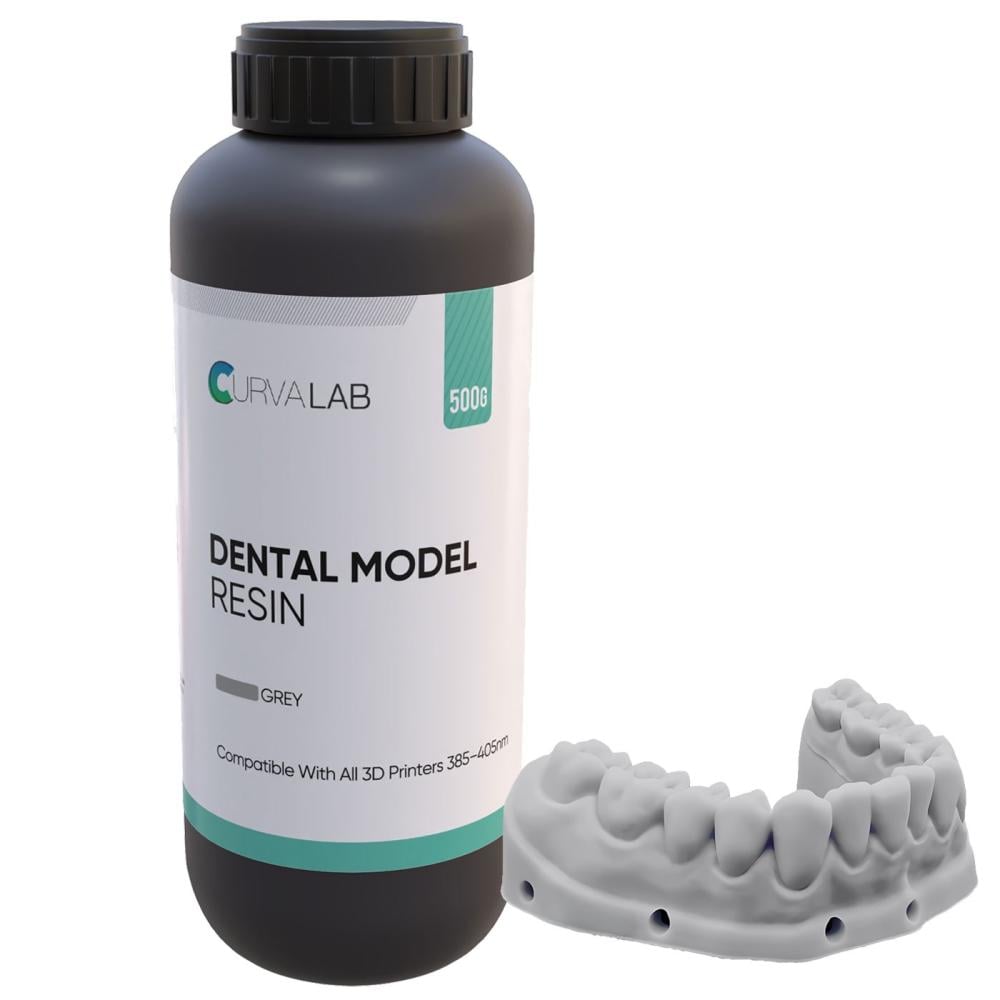

• Grey

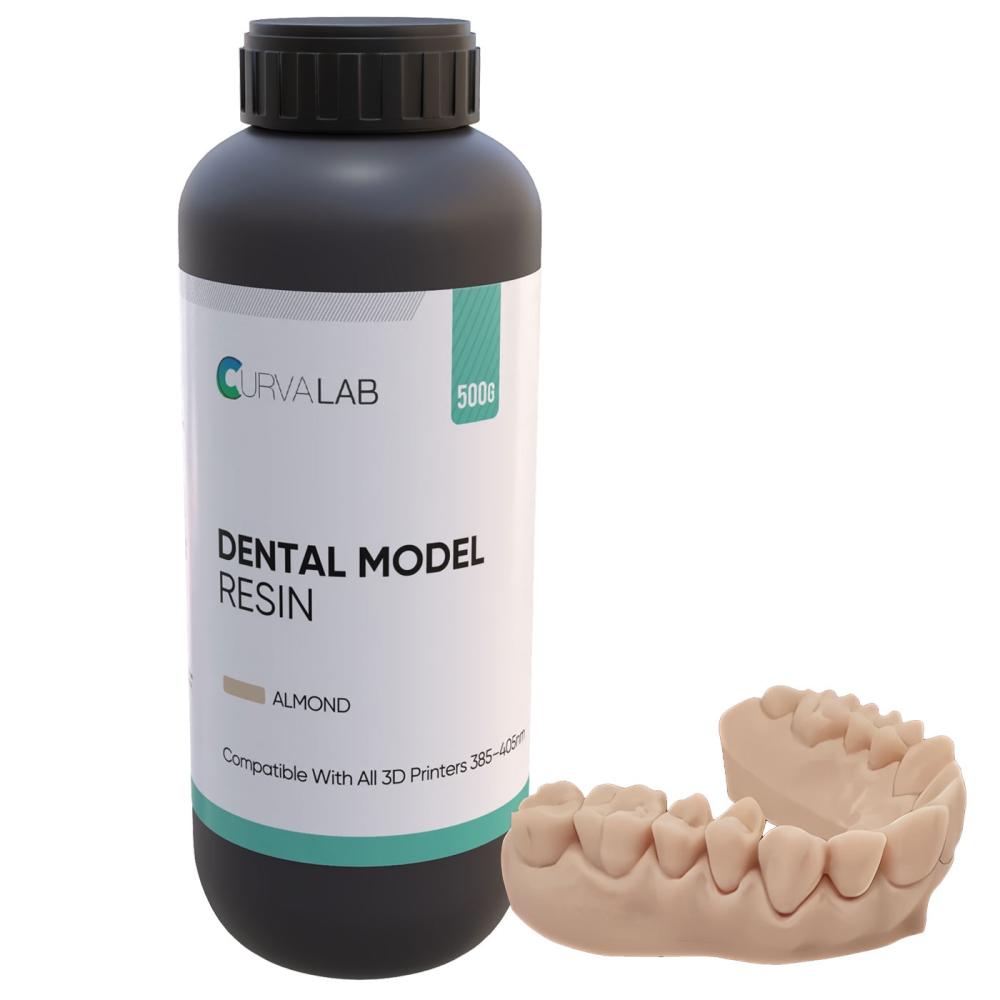

• Almond
⭐ Key Features
• 🦷 High precision suitable for dental and orthodontic modeling.
• 📏 Excellent dimensional stability for accurate clinical measurements.
• 🧽 Smooth surface finish requiring minimal post‑processing.
• 🧱 Balanced hardness for durable, non‑brittle models.
• 🖨️ Compatible with LCD/MSLA.
🧩 Recommended Applications
• Orthodontic and dental models
• Educational and training molds
• Diagnostic replicas
• High‑detail dental demonstrations
• Professional display models
🔧 Recommended Print Settings
•Layer height (mm): 0.05-0.1
•Bottom exposure time(s): 25-30
•Layer exposure time(s): 2.5-4.5
•Bottom Lift Distance (mm): 6
•Lifting Distance (mm): 6
•Bottom Lift Speed (mm/min): 60
•Lifting Speed (mm/min): 80
•Retract Speed (mm/min): 150
•Rest time after retract: 2-3
📊 Resin performance
• Tensile Strength: 33–45 MPa
• Flexural Strength: 60–80 MPa
• Elongation at Break: 8–15%
• Shore Hardness: 80 – 90
• Viscosity: 200 – 350 mPa·s
• Density: 1.05 – 1.20 g/cm³
• Shrinkage: Very low
💡 Pro Tips
• Shake the bottle thoroughly before printing.
• Use gloves and proper ventilation.
• Clean prints with IPA or a suitable cleaning solution.
• Dry completely before curing.
• Apply gradual UV curing for optimal hardness.
