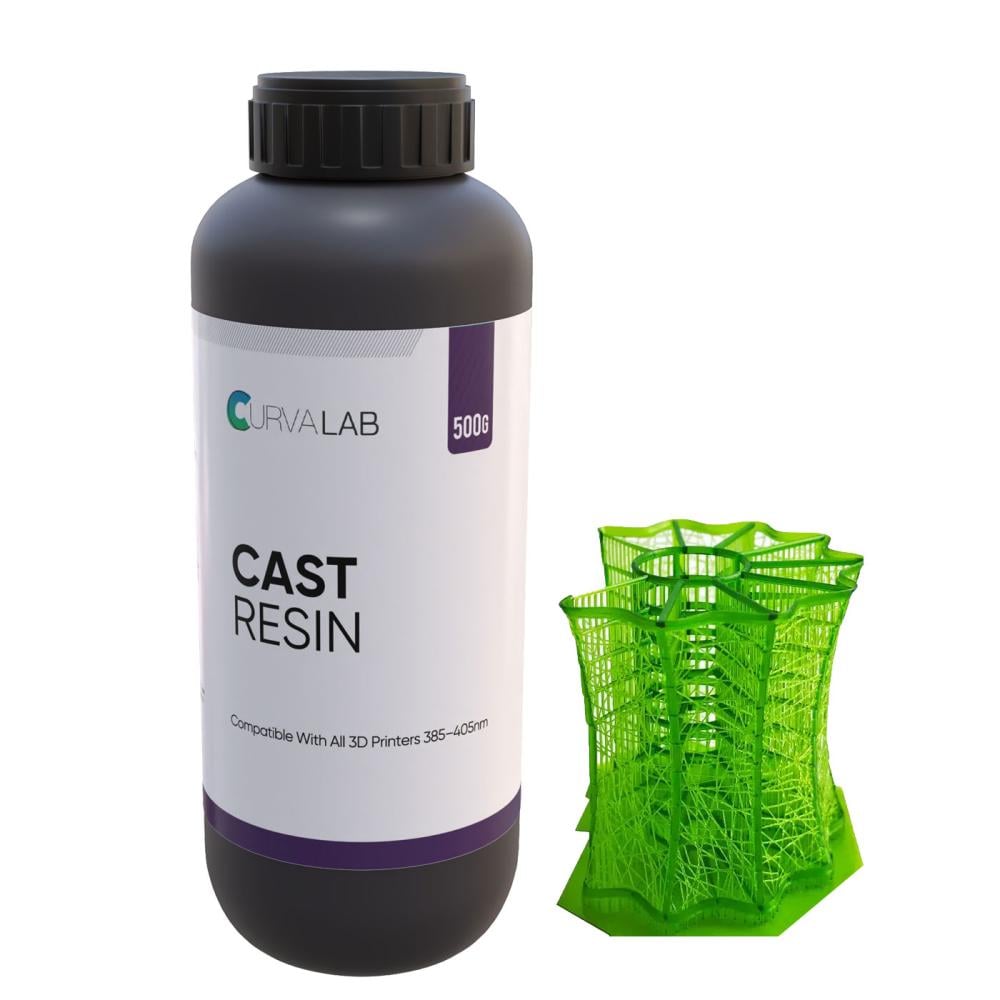

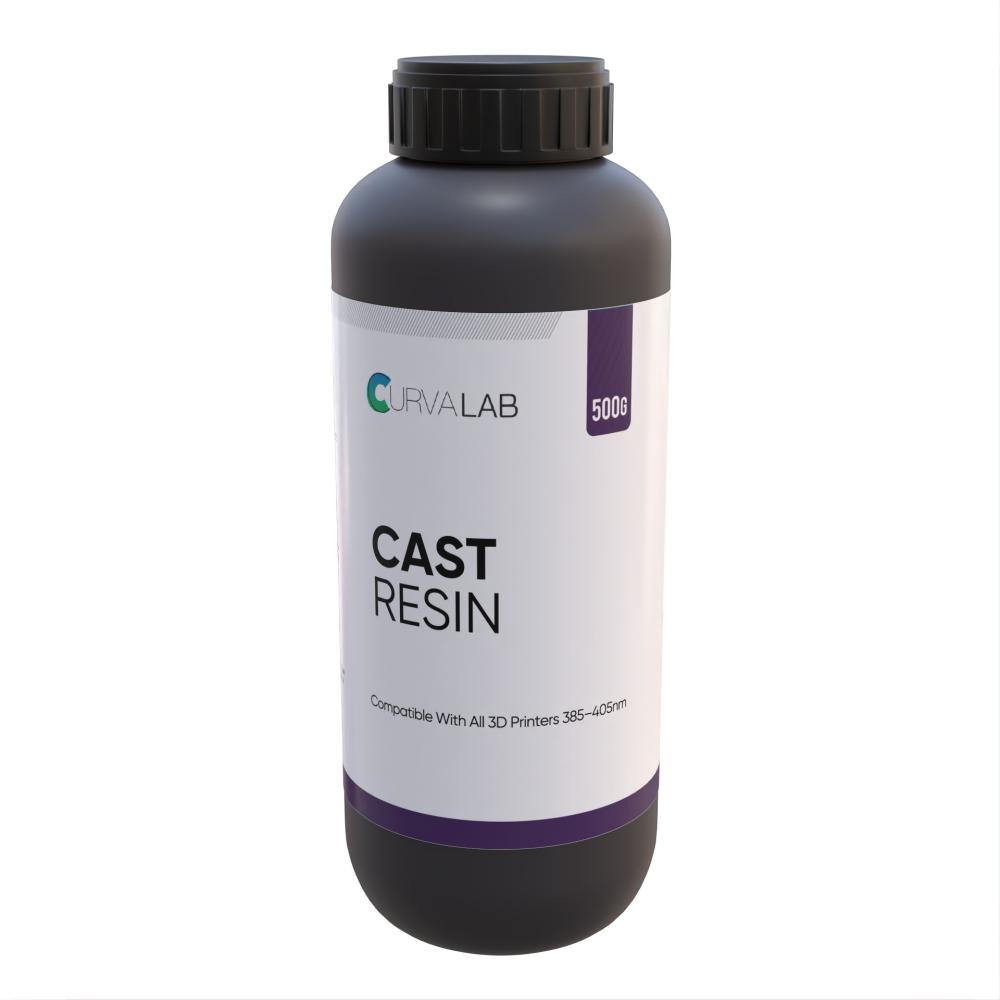

CurvaLab CAST Resin for LCD 3D printers is engineered for high‑precision casting applications, offering clean burnout performance with no ash residue. Its specialized formulation ensures sharp details, smooth surfaces, and dimensional stability, making it ideal for jewelry casting, dental molds, and intricate parts that require flawless burnout and accurate reproduction.
🎨 Key Features
• 🔥 Clean burnout with zero ash, ideal for lost‑wax casting.
• 🧩 High‑detail resolution suitable for small and intricate models.
• 📏 Low shrinkage for accurate dimensions during printing and burnout.
• 🧽 Smooth surface finish requiring minimal post‑processing.
• 🖨️ Compatible with LCD/MSLA .
🎯 Recommended Applications
• Jewelry casting and micro‑details
• Dental molds and precision patterns
• Small engineering parts requiring clean burnout
• Artistic miniatures and sculpting
• High‑accuracy casting masters
🔧 Recommended Print Settings
•Layer height (mm): 0.25
•Bottom exposure time(s): 40-50
•Layer exposure time(s): 8-12
•Bottom Lift Distance (mm): 6
•Lifting Distance (mm): 6
•Bottom Lift Speed (mm/min): 60
•Lifting Speed (mm/min): 80
•Retract Speed (mm/min): 150
•Rest time after retract: 2-3
📊 Resin performance
• Tensile Strength: 22.58 MPa ±10%
• Flexural Strength: 25.48 MPa ±10%
• Elongation at Break: 187.13% ±10% (high flexibility to prevent cracking)
• Shore Hardness: 73 – 75
• Viscosity: 500 – 650 mPa·s
• Density: 1.05 – 1.25 g/cm³
• Shrinkage: Low
💡 Pro Tips
• Shake the bottle thoroughly before printing.
• Use gloves and ensure proper ventilation.
• Clean prints with IPA or a suitable cleaning solution.
• Dry completely before curing.
• Follow a controlled burnout schedule for best casting results.
